CU Vintols
CU Vintols

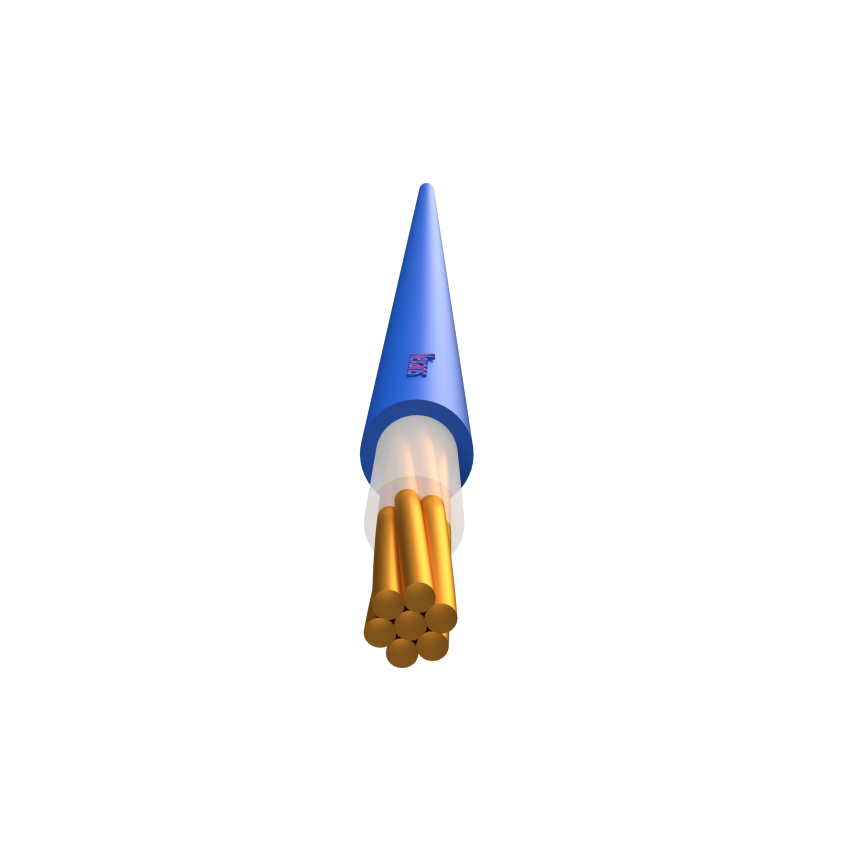

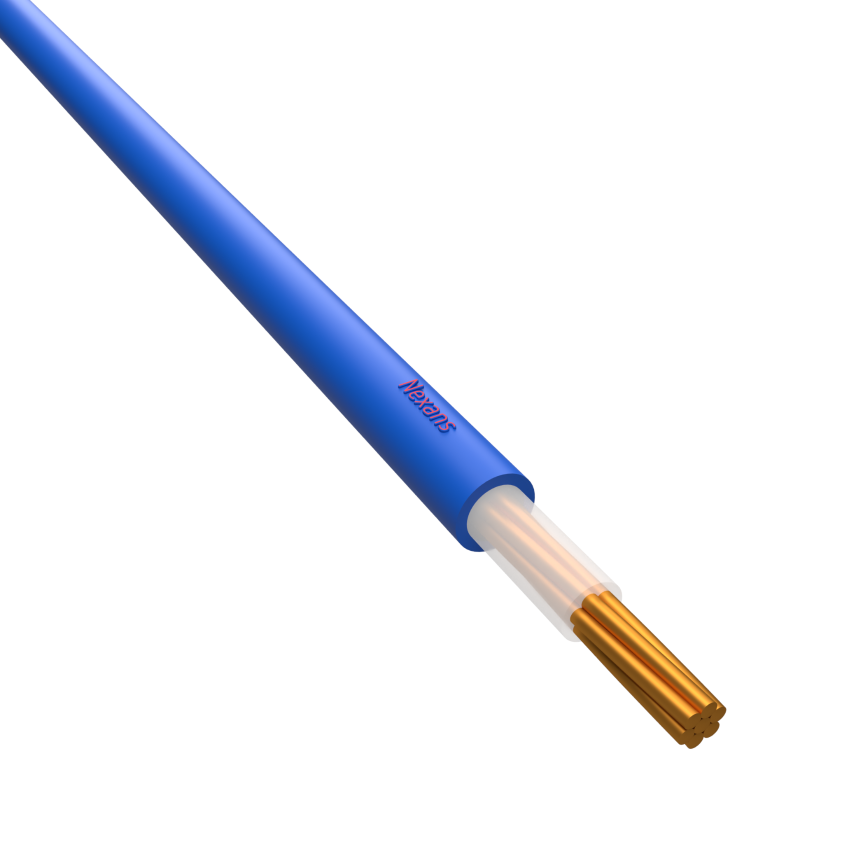

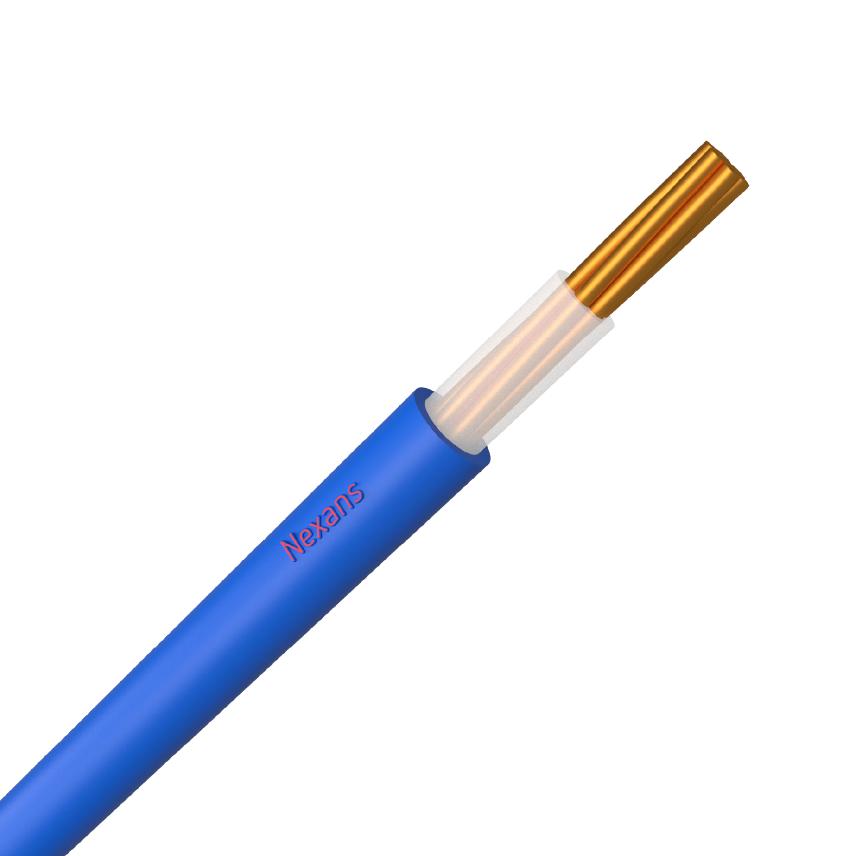

Cu conductor, PVC insulated, PVC sheath. 0.6/1 kV. Made to AS/NZS 5000.1
Read moreCU VINTOL 16 NL BK V75 1HM
Nexans ref. BABP15A1001CXNA - Country ref. 5560.1
- Packaging: Spool (100m)
- Sheath colour: Black
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.23 kg/m
CU VINTOL 16 NL BU V75 1HM
Nexans ref. BABP15A1001BFNA - Country ref. 3818.1
- Packaging: Spool (100m)
- Sheath colour: Blue
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.23 kg/m
CU VINTOL 16 NL RD V75 1HM
Nexans ref. BABP15A1001JBNA - Country ref. 4354.1
- Packaging: Spool (100m)
- Sheath colour: Red
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.23 kg/m
CU VINTOL 16 NL WH V75 1HM
Nexans ref. BABP15A1001WVNA - Country ref. 8131.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 16 mm²
- Nominal overall diameter: 10.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.23 kg/m
CU VINTOL 25 NL BK V75 1HM
Nexans ref. BABP16A1001CXNA - Country ref. 8124.1
- Packaging: Spool (100m)
- Sheath colour: Black
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.35 kg/m
CU VINTOL 25 NL BU V75 1HM
Nexans ref. BABP16A1001BFNA - Country ref. 4321.1
- Packaging: Spool (100m)
- Sheath colour: Blue
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.35 kg/m
CU VINTOL 25 NL BU V75 250HM
Nexans ref. BABP16A3001BFNA - Country ref. 4321.25
- Packaging: Spool (250m)
- Sheath colour: Blue
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.35 kg/m
CU VINTOL 25 NL RD V75 1HM
Nexans ref. BABP16A1001JBNA - Country ref. 7522.1
- Packaging: Spool (100m)
- Sheath colour: Red
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.35 kg/m
CU VINTOL 25 NL WH V75 1HM
Nexans ref. BABP16A1001WVNA - Country ref. 6139.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 25 mm²
- Nominal overall diameter: 11.8 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.35 kg/m
CU VINTOL 35 NL BK V75 1HM
Nexans ref. BABP18A1001CXNA - Country ref. 3844.1
- Packaging: Spool (100m)
- Sheath colour: Black
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 13.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.45 kg/m
CU VINTOL 35 NL BU V75 1HM
Nexans ref. BABP18A1001BFNA - Country ref. 9624.1
- Packaging: Spool (100m)
- Sheath colour: Blue
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 13.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.45 kg/m
CU VINTOL 35 NL RD V75 1HM
Nexans ref. BABP18A1001JBNA - Country ref. 8058.1
- Packaging: Spool (100m)
- Sheath colour: Red
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 13.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.45 kg/m
CU VINTOL 35 NL WH V75 1HM
Nexans ref. BABP18A1001WVNA - Country ref. 8224.1
- Packaging: Spool (100m)
- Sheath colour: White
- Conductor cross-section: 35 mm²
- Nominal overall diameter: 13.0 mm
- Gland Size (A2 or A2F): 20
- Approximate weight: 0.45 kg/m
CU VINTOL 4 NL OG V75
Nexans ref. BABP09AA001OMNA - Country ref. 2642
- Packaging: Cut to length (m)
- Sheath colour: Orange
- Conductor cross-section: 4 mm²
- Nominal overall diameter: 7.7 mm
- Gland Size (A2 or A2F): 20S/16
- Approximate weight: 0.1 kg/m
CU VINTOL 70 NL BK V75
Nexans ref. BABP20AA001CXNA - Country ref. 1693
- Packaging: Cut to length (m)
- Sheath colour: Black
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 16.4 mm
- Gland Size (A2 or A2F): 25
- Approximate weight: 0.82 kg/m
CU VINTOL 70 NL BU V75
Nexans ref. BABP20AA001BFNA - Country ref. 7116
- Packaging: Cut to length (m)
- Sheath colour: Blue
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 16.4 mm
- Gland Size (A2 or A2F): 25
- Approximate weight: 0.82 kg/m
CU VINTOL 70 NL RD V75
Nexans ref. BABP20AA001JBNA - Country ref. 8611
- Packaging: Cut to length (m)
- Sheath colour: Red
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 16.4 mm
- Gland Size (A2 or A2F): 25
- Approximate weight: 0.82 kg/m
CU VINTOL 70 NL WH V75
Nexans ref. BABP20AA001WVNA - Country ref. 9981
- Packaging: Cut to length (m)
- Sheath colour: White
- Conductor cross-section: 70 mm²
- Nominal overall diameter: 16.4 mm
- Gland Size (A2 or A2F): 25
- Approximate weight: 0.82 kg/m
Description
Description
Standards
-
NationalAS/NZS 5000.1
Application
- Industrial and commercial applications (predominantly)
- Some domestic applications
- For use in various situations to supply the main power from the point of supply (either single or three phase application) to buildings, equipment, eg, switch board to main control cabinet, main between floors and buildings, cable cabinet to motor, etc. Commonly used in Power Authority work.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Current carrying capacities single phase (in Amps) - Single conductor PVC
Copper conductor - Circular stranded - Insulation PVC
Aluminum conductor - Circular stranded except 240 mm² Compact circular stranded - Insulation PVC
Max. Conductor Temperature 75⁰C
Conductor cross-section |
|
|
|
|
|
|
|
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
4.0 | 44 | 0 | 35 | 0 | 36 | 0 | 56 | 0 | 52 | 0 | 45 | 0 | 18 | |
16.0 | 56 | 0 | 46 | 0 | 47 | 0 | 71 | 0 | 109 | 0 | 98 | 0 | 41 | |
25.0 | 76 | 0 | 62 | 0 | 62 | 0 | 94 | 0 | 142 | 0 | 128 | 0 | 55 | |
35.0 | 101 | 0 | 82 | 0 | 80 | 0 | 134 | 0 | 171 | 0 | 153 | 0 | 67 | |
70.0 | 136 | 197 | 111 | 163 | 107 | 150 | 174 | 237 | 251 | 195 | 227 | 176 | 0 | |
95.0 | 0 | 244 | 0 | 203 | 0 | 187 | 0 | 283 | 0 | 237 | 0 | 215 | 0 | |
120.0 | 0 | 284 | 0 | 237 | 0 | 214 | 0 | 323 | 0 | 270 | 0 | 245 | 0 | |
185.0 | 0 | 377 | 0 | 318 | 0 | 284 | 0 | 411 | 0 | 349 | 0 | 281 | 0 | |
240.0 | 0 | 449 | 0 | 381 | 0 | 340 | 0 | 477 | 0 | 405 | 0 | 320 | 0 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
Buried in multi-way duct |
Cable surrounded by thermal insulation, unenclosed |
Current carrying capacities three phase (in Amps) - Single conductor PVC
Single Conductor PVC (three phase)
PVC insulation
Unarmoured
Sheathed or unsheathed
For cables up to and including 0.6/1 kV @ 50 Hz AC.
Conductor cross-section |
|
|
|
|
|
|
|
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
4.0 | 38 | 0 | 35 | 0 | 32 | 0 | 40 | 0 | 47 | 0 | 40 | 0 | 18 | |
16.0 | 88 | 0 | 82 | 0 | 71 | 0 | 114 | 0 | 99 | 0 | 86 | 0 | 41 | |
25.0 | 117 | 0 | 111 | 0 | 92 | 0 | 147 | 0 | 129 | 0 | 110 | 0 | 55 | |
35.0 | 145 | 0 | 136 | 0 | 114 | 0 | 176 | 0 | 154 | 0 | 134 | 0 | 67 | |
70.0 | 225 | 174 | 210 | 163 | 173 | 135 | 256 | 199 | 226 | 175 | 198 | 154 | 0 | |
95.0 | 0 | 218 | 0 | 203 | 0 | 162 | 0 | 238 | 0 | 213 | 0 | 185 | 0 | |
120.0 | 0 | 254 | 0 | 237 | 0 | 193 | 0 | 272 | 0 | 242 | 0 | 216 | 0 | |
185.0 | 0 | 341 | 0 | 317 | 0 | 253 | 0 | 344 | 0 | 312 | 0 | 278 | 0 | |
240.0 | 0 | 408 | 0 | 381 | 0 | 307 | 0 | 400 | 0 | 362 | 0 | 325 | 0 |
Air Spaced from Surface, Unenclosed |
Air touching, unenclosed |
Air enclosed |
Buried direct |
Buried in single-way duct |
Buried in multi-way duct |
Cable surrounded by thermal insulation, unenclosed |
