VAROLEX® FLEXIBLE VSD
VAROLEX® FLEXIBLE VSD
VAROLEX

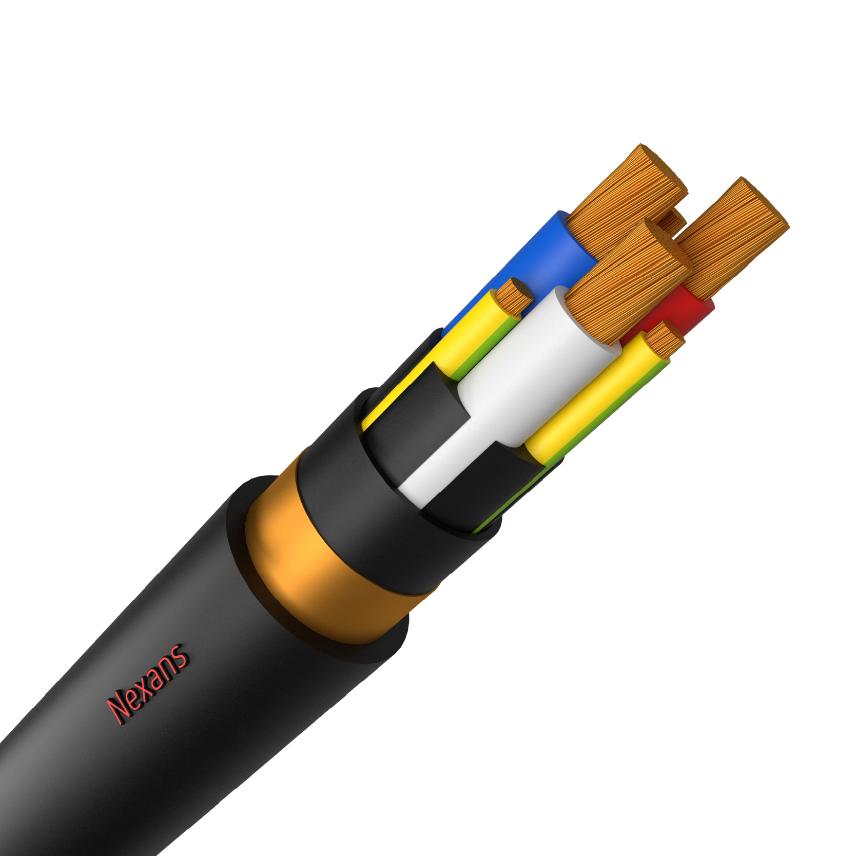

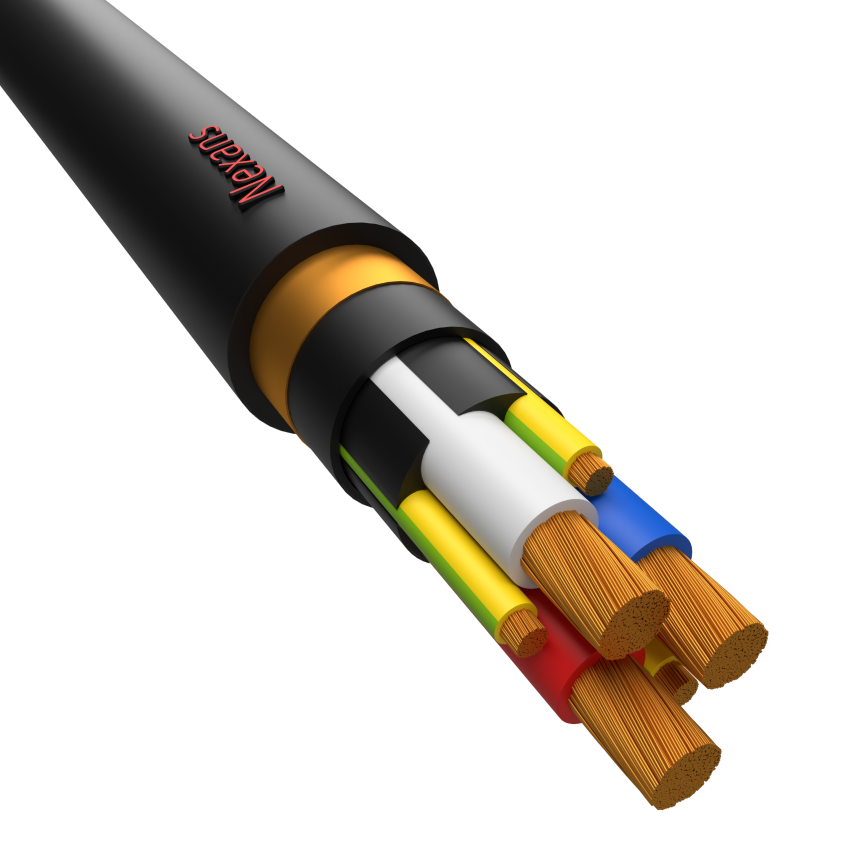

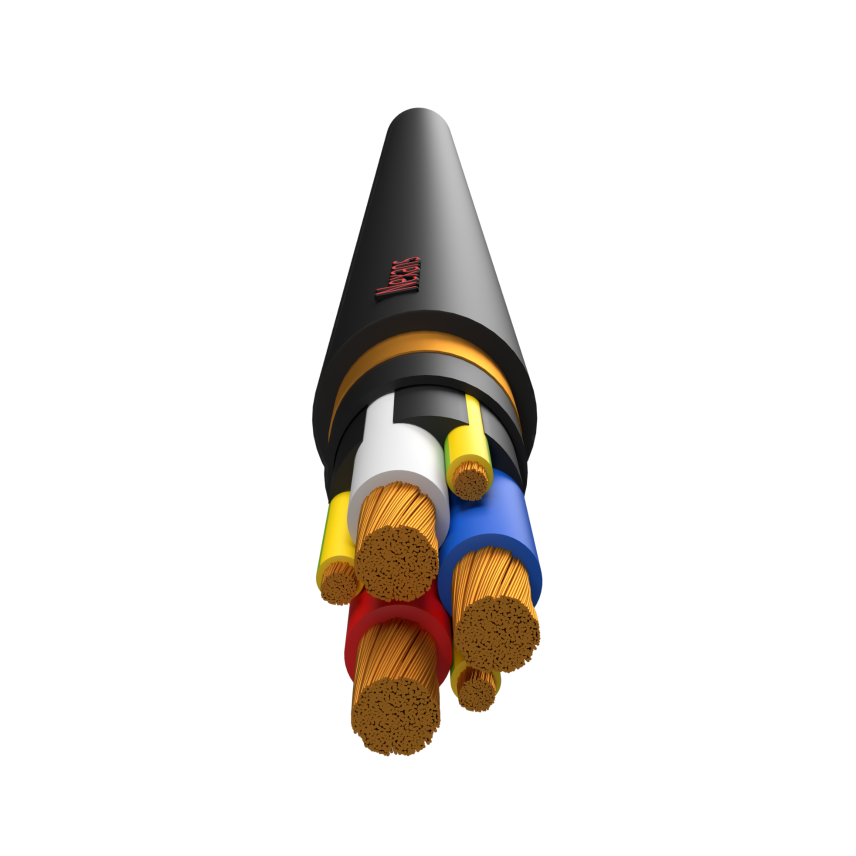

3C + E flexible copper conductor, 0.6/1kV X-90 insulated, PVC bedded, copper tape screened, PVC sheathed to AS/NZS 5000.1, 90°C
Read moreCU VAROLEX-FLEX 3X 2.5+E
Nexans ref. FTDR05AA003CXRJ - Country ref. 4532
- Packaging: Cut to length (m)
- Conductor cross-section: 2.5 mm²
- Nominal insulation thickness: 0.7 mm
- Combined earth size section: 2.5 mm²
- Nominal overall diameter: 14.6 mm
- Approximate weight: 33.0 kg/100m
CU VAROLEX-FLEX 3X 4+4.5SE
Nexans ref. FTDR06AA003CXRJ - Country ref. 1023
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal insulation thickness: 0.7 mm
- Combined earth size section: 4.5 mm²
- Nominal overall diameter: 16.8 mm
- Approximate weight: 46.0 kg/100m
CU VAROLEX-FLEX 3X 6+4.5SE
Nexans ref. FTDR07AA003CXRJ - Country ref. 2197
- Packaging: Cut to length (m)
- Conductor cross-section: 6 mm²
- Nominal insulation thickness: 0.7 mm
- Combined earth size section: 4.5 mm²
- Nominal overall diameter: 17.7 mm
- Approximate weight: 59.0 kg/100m
CU VAROLEX-FLEX 3X 10+4.5SE
Nexans ref. FTDX01AA003CXRJ - Country ref. 7316
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Nominal insulation thickness: 0.7 mm
- Combined earth size section: 4.5 mm²
- Nominal overall diameter: 19.3 mm
- Approximate weight: 76.0 kg/100m
CU VAROLEX-FLEX 3X 16+7.5SE
Nexans ref. FTDX02AA003CXRJ - Country ref. 7781
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal insulation thickness: 0.8 mm
- Combined earth size section: 7.5 mm²
- Nominal overall diameter: 21.6 mm
- Approximate weight: 101.0 kg/100m
CU VAROLEX-FLEX 3X 25+12SE
Nexans ref. FTDX03AA003CXRJ - Country ref. 4621
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal insulation thickness: 0.9 mm
- Combined earth size section: 12 mm²
- Nominal overall diameter: 24.5 mm
- Approximate weight: 133.0 kg/100m
CU VAROLEX-FLEX 3X 35+18SE
Nexans ref. FTDX04AA003CXRJ - Country ref. 8447
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal insulation thickness: 0.9 mm
- Combined earth size section: 18 mm²
- Nominal overall diameter: 27.1 mm
- Approximate weight: 174.0 kg/100m
CU VAROLEX-FLEX 3X 50^+30SE
Nexans ref. FTDX05AA003CXRJ - Country ref. 9179
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal insulation thickness: 1.0 mm
- Combined earth size section: 30 mm²
- Nominal overall diameter: 31.4 mm
- Approximate weight: 246.0 kg/100m
CU VAROLEX-FLEX 3X 70^+30SE
Nexans ref. FTDX06AA003CXRJ - Country ref. 1289
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal insulation thickness: 1.1 mm
- Combined earth size section: 30 mm²
- Nominal overall diameter: 35.8 mm
- Approximate weight: 321.0 kg/100m
CU VAROLEX-FLEX 3X 95+48SE
Nexans ref. FTDX07AA003CXRJ - Country ref. 7178
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal insulation thickness: 1.1 mm
- Combined earth size section: 48 mm²
- Nominal overall diameter: 40.3 mm
- Approximate weight: 414.0 kg/100m
CU VAROLEX-FLEX 3X 120+SE
Nexans ref. FTDE87AA003CXRJ - Country ref. 3453
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal insulation thickness: 1.2 mm
- Combined earth size section: 48 mm²
- Nominal overall diameter: 45.3 mm
- Approximate weight: 511.0 kg/100m
CU VAROLEX-FLEX 3X 150+SE
Nexans ref. FTDE88AA003CXRJ - Country ref. 9277
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.4 mm
- Combined earth size section: 75 mm²
- Nominal overall diameter: 50.2 mm
- Approximate weight: 631.0 kg/100m
CU VAROLEX-FLEX 3X 185+SE
Nexans ref. FTDE89AA003CXRJ - Country ref. 8893
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal insulation thickness: 1.6 mm
- Combined earth size section: 75 mm²
- Nominal overall diameter: 55.2 mm
- Approximate weight: 750.0 kg/100m
CU VAROLEX-FLEX 3X 240+105SE
Nexans ref. FTDE90AA003CXRJ - Country ref. 3093
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal insulation thickness: 1.7 mm
- Combined earth size section: 105 mm²
- Nominal overall diameter: 61.7 mm
- Approximate weight: 973.0 kg/100m
CU VAROLEX-FLEX 3X 300+SE
Nexans ref. FTDE91AA003CXRJ - Country ref. 7513
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal insulation thickness: 1.8 mm
- Combined earth size section: 150 mm²
- Nominal overall diameter: 68.3 mm
- Approximate weight: 1207.0 kg/100m
Description
Description
Standards
-
ProductAS/NZS 5000.1
- Intended for fixed variable speed drive applications
- 0.6/1kV X-90 insulated,
- 3 core+3 earths,
- PVC bedded,
- Copper tape screened,
- PVC sheathed to AS/NZS 5000.1,
- Class 5 and 6 flexible conductor
*For 2.5 mm², split earth not feasible, therefore a single earth conductor is utilised.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 5
Conductor material
Copper
Insulation
X-90
With Green/Yellow core
Yes
Screen
Copper tape
Material of bedding
PVC filler
Outer sheath
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
U.V resistance
Yes
Resources
Resources
Documentation
Varolex VSD Flexible flyer
pdf — 1.0 MB
Current carrying capacities three phase (in Amps) - Varolex, Three Core Plus Earth
Copper conductor - Circular stranded (Class 5)
Insulation XLPE
Max. Conductor Temperature 90⁰C
| Conductor cross-section |
|
|
|
|
|
|---|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu | Cu |
| 2.5 | 30 | 29 | 25 | 31 | 30 |
| 4.0 | 40 | 37 | 32 | 40 | 40 |
| 6.0 | 51 | 47 | 41 | 49 | 48 |
| 10.0 | 73 | 67 | 57 | 67 | 66 |
| 16.0 | 96 | 89 | 74 | 118 | 85 |
| 25.0 | 128 | 119 | 98 | 153 | 110 |
| 35.0 | 158 | 149 | 122 | 184 | 136 |
| 50.0 | 200 | 187 | 150 | 218 | 166 |
| 70.0 | 253 | 235 | 190 | 269 | 207 |
| 95.0 | 303 | 282 | 222 | 323 | 242 |
| 120.0 | 360 | 333 | 266 | 368 | 285 |
| 150.0 | 413 | 383 | 301 | 412 | 321 |
| 185.0 | 471 | 436 | 345 | 465 | 363 |
| 240.0 | 562 | 527 | 417 | 539 | 430 |
| 300.0 | 642 | 604 | 0 | 607 | 484 |
|
Air Spaced from Surface, Unenclosed |
|
Air touching, unenclosed |
|
Air enclosed |
|
Buried direct |
|
Buried in single-way duct |
