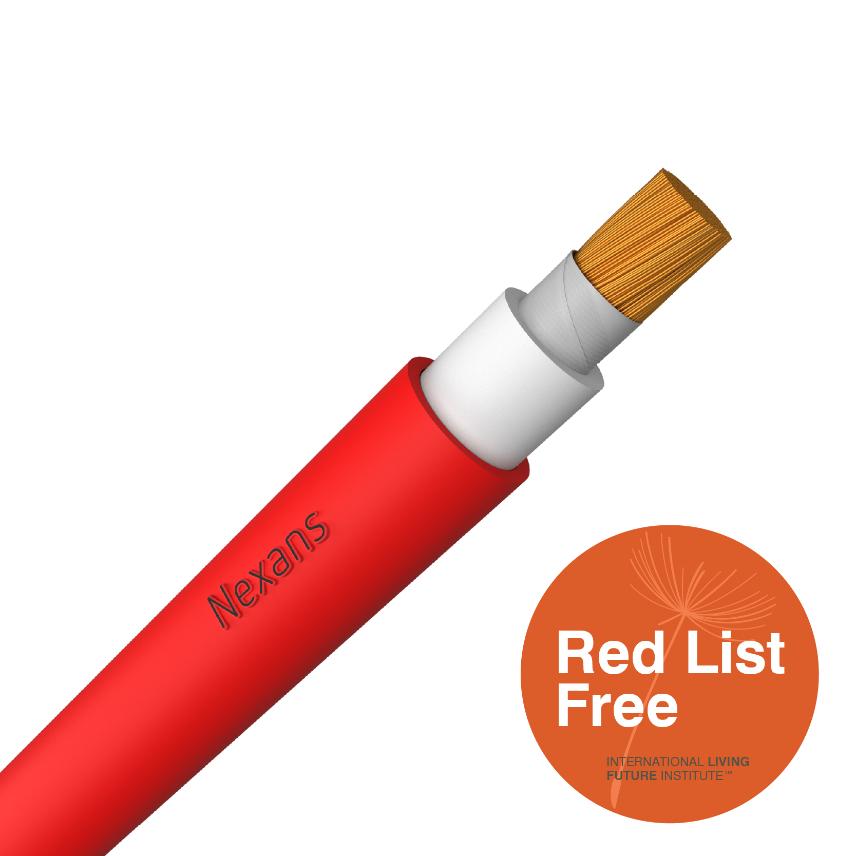

ALSECURE® Single Core

Products

CU ALSEC RHE-1 FLEX 1x10 110 RD

Nexans ref. PFLX01AA001JBNA - Country ref. 9915

  • Packaging: Cut to length (m)
  • Conductor cross-section: 10 mm²
  • Nominal overall diameter: 8.9 mm



CU ALSEC RHE-1 FLEX 1x16 110 RD

Nexans ref. PFLX02AA001JBNA - Country ref. 7036

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²
  • Nominal overall diameter: 10.1 mm



CU ALSEC RHE-1 FLEX 1x25 110 RD

Nexans ref. PFLX03AA001JBNA - Country ref. 9411

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²
  • Nominal overall diameter: 11.6 mm



CU ALSEC RHE-1 FLEX 1x35 110 RD

Nexans ref. PFLX04AA001JBNA - Country ref. 3135

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²
  • Nominal overall diameter: 13.5 mm



CU ALSEC RHE-1 FLEX 1x50 110 RD

Nexans ref. PFLX05AA001JBNA - Country ref. 1760

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²
  • Nominal overall diameter: 15.3 mm



CU ALSEC RHE-1 FLEX 1x70 110 RD

Nexans ref. PFLX06AA001JBNA

  • Packaging: Cut to length (m)
  • Conductor cross-section: 70 mm²
  • Nominal overall diameter: 17.2 mm



CU ALSEC RHE-1 FLEX 1x95 110 RD

Nexans ref. PFLX07AA001JBNA - Country ref. 2289

  • Packaging: Cut to length (m)
  • Conductor cross-section: 95 mm²
  • Nominal overall diameter: 19.3 mm



CU ALSEC RHE-1 FLEX 1x120 110 RD

Nexans ref. PFLE87AA001JBNA

  • Packaging: Cut to length (m)
  • Conductor cross-section: 120 mm²
  • Nominal overall diameter: 21.6 mm



CU ALSEC RHE-1 FLEX 1x150 110 RD

Nexans ref. PFLE88AA001JBNA - Country ref. 7484

  • Packaging: Cut to length (m)
  • Conductor cross-section: 150 mm²
  • Nominal overall diameter: 23.5 mm



CU ALSEC RHE-1 FLEX 1x185 110 RD

Nexans ref. PFLE89AA001JBNA

  • Packaging: Cut to length (m)
  • Conductor cross-section: 185 mm²
  • Nominal overall diameter: 26.2 mm



CU ALSEC RHE-1 FLEX 1x240 110 RD

Nexans ref. PFLE90AA001JBNA - Country ref. 9484

  • Packaging: Cut to length (m)
  • Conductor cross-section: 240 mm²
  • Nominal overall diameter: 29.1 mm



CU ALSEC RHE-1 FLEX 1x300 110 RD

Nexans ref. PFLE91AA001JBNA - Country ref. 9948

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal overall diameter: 31.8 mm



CU ALSEC RHE-1 FLEX 1x400 110 RD

Nexans ref. PFLE92AA001JBNA - Country ref. 7390

  • Packaging: Cut to length (m)
  • Conductor cross-section: 400 mm²
  • Nominal overall diameter: 35.9 mm



CU ALSEC RHE-1 FLEX 1x500 110 RD

Nexans ref. PFLE93AA001JBNA - Country ref. 3880

  • Packaging: Cut to length (m)
  • Conductor cross-section: 500 mm²
  • Nominal overall diameter: 40.8 mm



CU ALSEC RHE-1 FLEX 1x630 110 RD

Nexans ref. PFLE94AA001JBNA - Country ref. 5779

  • Packaging: Cut to length (m)
  • Conductor cross-section: 630 mm²
  • Nominal overall diameter: 45.0 mm



Description

Description

Standards

  • Product
    AS/NZS 5000.1
  • Installation
    AS/NZS 3013

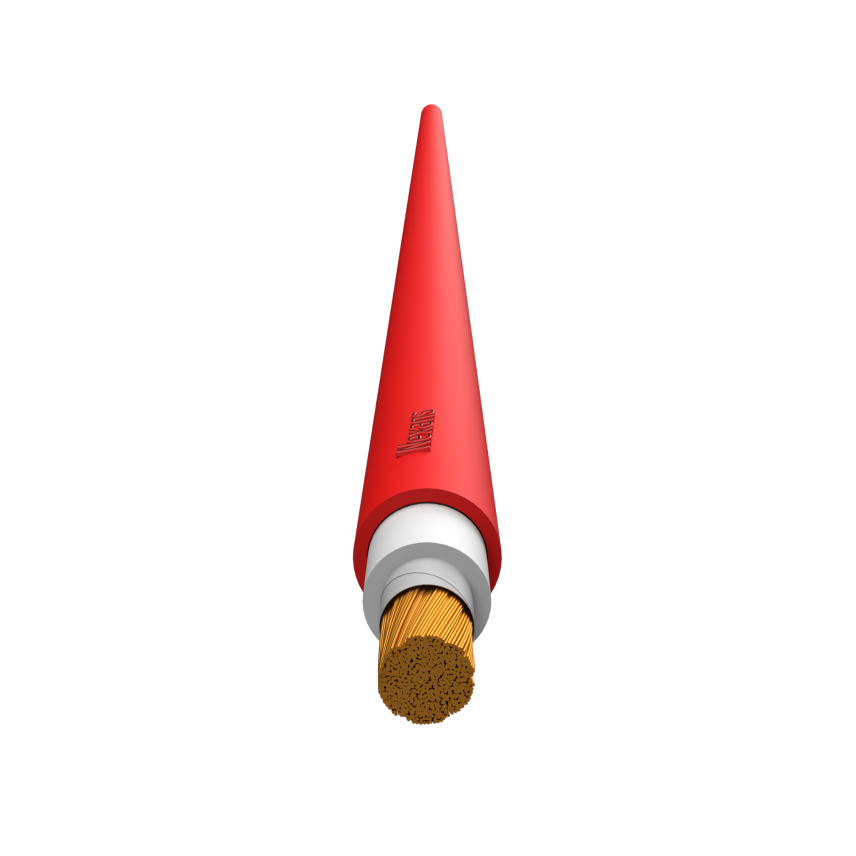

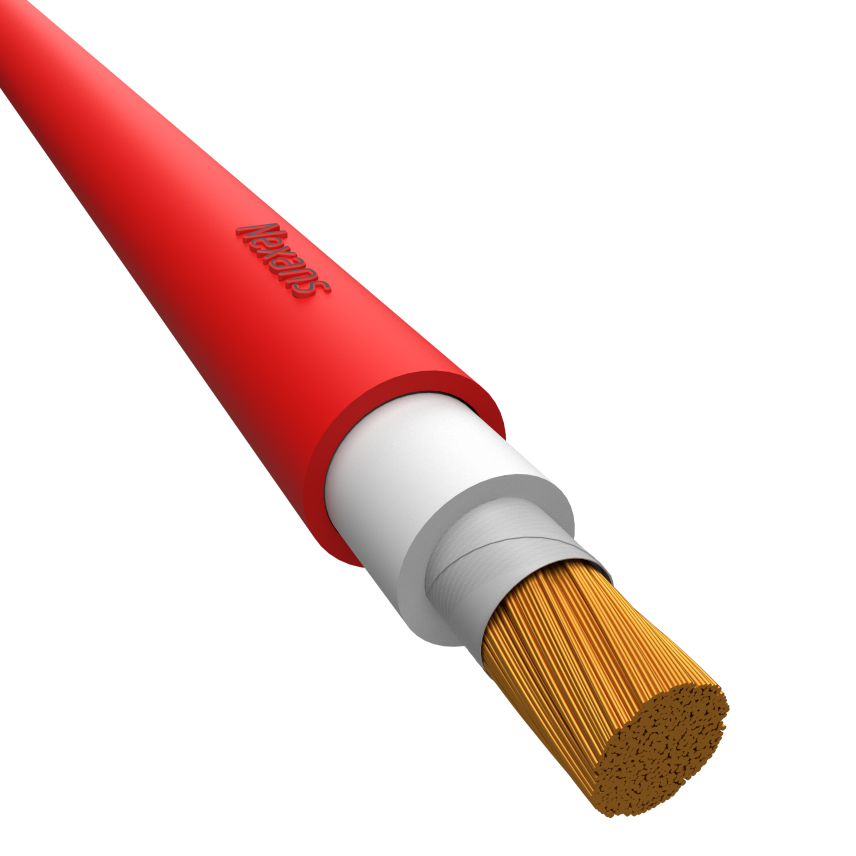

Construction

Stranded Flexible (Class 5) Plain Annealed Copper Conductor,
X-HF-110 Insulated, HFS-110-TP Sheathed to AS/NZS 5000.1, 110°C, Fire Rated to AS/NZS 3013 WS52W

ALSECURE® Single Core cables are a range of Fire Resistant single core products for use in mains and sub-mains applications. Rated to 0.6/1kV, 110°C, this LFH range of Fire Resistant cables will maintain circuit integrity and life-saving essential services in the event of fire. The ALSECURE® Single Core range is available in sizes from 10mm² to 630mm².

Features

  • Flexible stranded copper conductor
  • Halogen free, low smoke, flame retardant materials
  • 110ºC rated insulation and sheath
  • Circuit integerity up to 120min under fire conditions. Tested to AS/NZS 3013 designation WS52W.

Benefits and applications

Benefits

  • Flexibility for fast, easy installation
  • Contributes to the green star rating of your project
  • Safer evacuation and better protection for essential building systems
  • The ALSECURE® product range is suitable for Green Star Buildings as they do not contain PVC.

Applications

  • Fire resistant Power Circuit
  • Consumer mains and Subs Mains, Lift sub mains
  • Power Cable to fire pumps
  • Power Cable for essential circuit

Voltage
0.6 / 1 KV

Continuous Operating Temperature
110°C

Colours
Insulation - White(Natural)
Outer Sheath - RED Only

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Red
Conductor flexibility
Class 5
Conductor material
Annealed copper
Insulation
X-HF-110
Outer sheath
HFS-110-TP
Type of conductor
Stranded flexible

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Fire safety
-
Maximum operating temperature
110 °C
Minimum operating temperature
-25 °C
U.V resistance
Yes

Resources

Resources

Current carrying capacities single phase (in Amps) - Single Core CU Alsecure 110°C

Copper conductor - Circular Flexible stranded conductor

Insulation X-HF-110 - Max. Conductor Temperature 110⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu
10.0 105 86 82 93 91 91 43
16.0 138 112 109 163 119 119 57
25.0 182 149 142 210 152 152 77
35.0 225 184 179 252 187 187 94
50.0 281 233 221 299 228 228 0
70.0 352 292 281 367 282 282 0
95.0 423 352 334 441 331 331 0
120.0 499 417 389 501 381 381 0
150.0 574 482 456 563 439 439 0
185.0 654 552 515 637 492 492 0
240.0 783 664 624 740 581 581 0
300.0 900 766 0 836 669 669 0
400.0 1076 920 0 952 778 778 0
500.0 1245 1069 0 1079 906 906 0
630.0 1454 1250 0 1217 1036 1036 0
Unenclosed spaced from surface
Unenclosed touching
Enclosed conduit in air
Buried direct
Buried in multi-way duct
Buried in single-way duct
Cable surrounded by thermal insulation, unenclosed

Current carrying capacities three phase (in Amps) - Single Core CU Alsecure 110°C

Copper conductor - Circular Flexible stranded conductor

Insulation X-HF-110

Max. Conductor Temperature 110⁰C

Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu Cu
10.0 91 86 75 82 81 81 43
16.0 120 112 97 138 103 103 57
25.0 159 149 129 178 133 133 77
35.0 197 184 158 213 160 160 94
50.0 249 232 203 251 199 199 0
70.0 312 292 250 308 243 243 0
95.0 378 352 296 369 284 284 0
120.0 447 417 354 420 335 335 0
150.0 516 482 404 472 378 378 0
185.0 592 552 469 533 428 428 0
240.0 712 663 576 618 510 510 0
300.0 820 764 655 696 575 575 0
400.0 982 915 810 791 687 687 0
500.0 1138 1059 924 894 773 773 0
630.0 1327 1235 1063 1004 878 878 0
Unenclosed spaced from surface
Unenclosed touching
Enclosed conduit in air
Buried direct
Buried in multi-way duct
Buried in single-way duct
Cable surrounded by thermal insulation, unenclosed

Selling & delivery Information

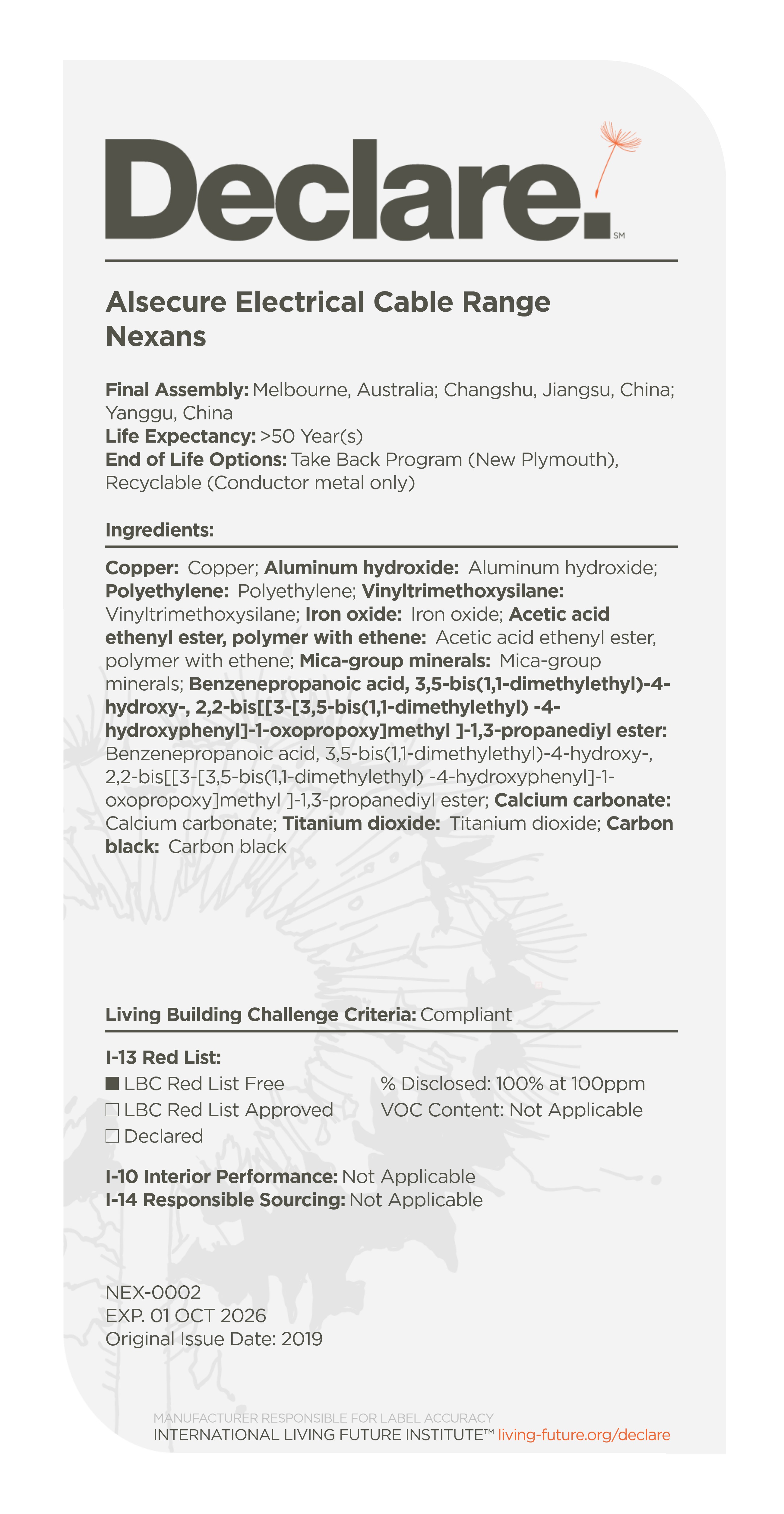

Nexans Fire Safety Offer ALSECURE® Fire Resistant Cables PVC-free Red List Free and Declare Labelled
