Multi Circuit Power Panel Mounts for Distribution Board
Multi Circuit Power Panel Mounts for Distribution Board

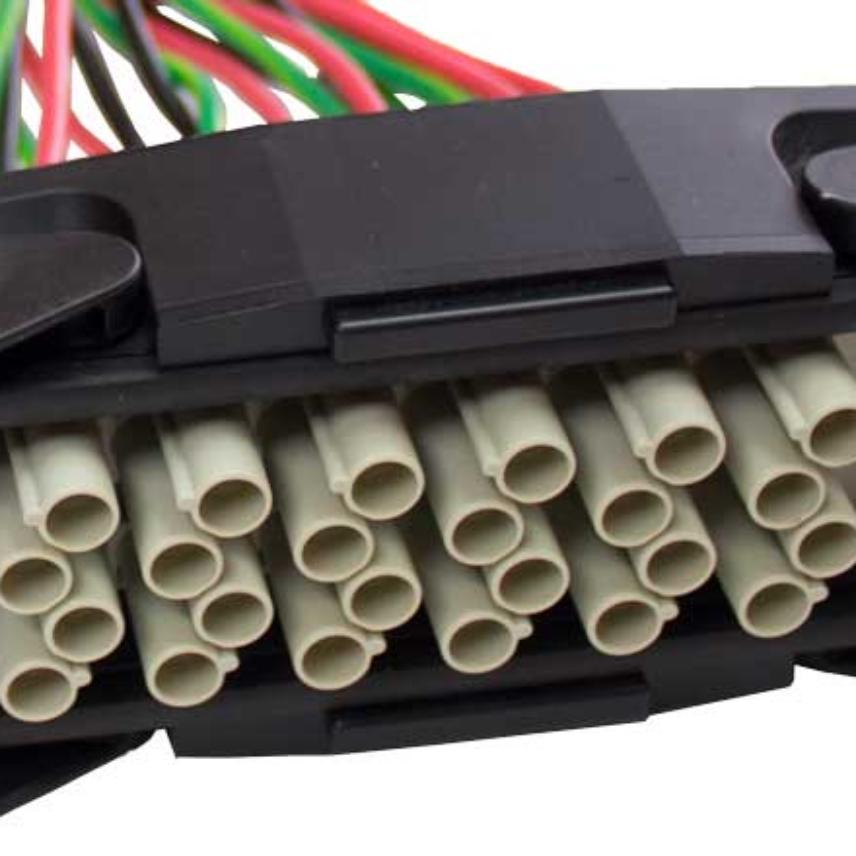

Female Power Panel Mount for Distribution Boards
Low Fire Hazard (XLPE) Cable
DB Power Panel Mount Pluggable Female 4.0mm² with 2.5m Tails
Nexans ref. A1.4.6S.4.025
- Approximate weight: 2.58 kg/m
DB Power Panel Mount Pluggable Female 4.0mm² with 2.5m Tails
Nexans ref. A1.4.6S.4.030
- Approximate weight: 3.061 kg/m
DB Power Panel Mount Pluggable Female 4.0mm² with 2m Tails
Nexans ref. A1.4.6S.4.020
- Approximate weight: 2.091 kg/m
Description
Description
Standards
-
NationalAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the PanelMount connections offer a pre-wired, pre-terminated and pre-tested Distribution Board system, ready to plug on site. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Single core flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.1
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
- Rating: 25amp. No# Conductors: 19wire. Conductor Size: 4.0mm
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Board Connections
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
- Modular Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Circular
Insulation
X-HF-90
Outer sheath
HFS-90-TP
Type of conductor
Circular, stranded, class 2
With Green/Yellow core
Yes
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
4 mm²
Number of cores
19
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C (Ohm/km)
4.61
Rated Voltage Uo/U (Um)
450/750 V
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
