Lighting Connector Leads
Lighting Connector Leads
Connector Lead for Lighting Circuits Low Fire Hazard (XLPE) Cable
Read more10m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.100
- Sheath colour: White
- Approximate weight: 1.2 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
10m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.100
- Sheath colour: Black
- Approximate weight: 1.637 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
11m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.110
- Sheath colour: White
- Approximate weight: 1.31 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
11m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.110
- Sheath colour: Black
- Approximate weight: 1.798 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
12m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.120
- Sheath colour: White
- Approximate weight: 1.43 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
12m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.120
- Sheath colour: Black
- Approximate weight: 1.96 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
1m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.010
- Sheath colour: White
- Approximate weight: 0.13 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
1m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.010
- Sheath colour: Black
- Approximate weight: 0.178 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
1m Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.010
- Sheath colour: Black
- Approximate weight: 0.27 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
2m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.020
- Sheath colour: White
- Approximate weight: 0.25 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
2m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.020
- Sheath colour: Black
- Approximate weight: 0.341 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
300mm Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.003
- Sheath colour: White
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
300mm Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.003
- Sheath colour: Black
- Approximate weight: 0.065 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
300mm Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.003
- Sheath colour: Black
- Approximate weight: 0.11 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41

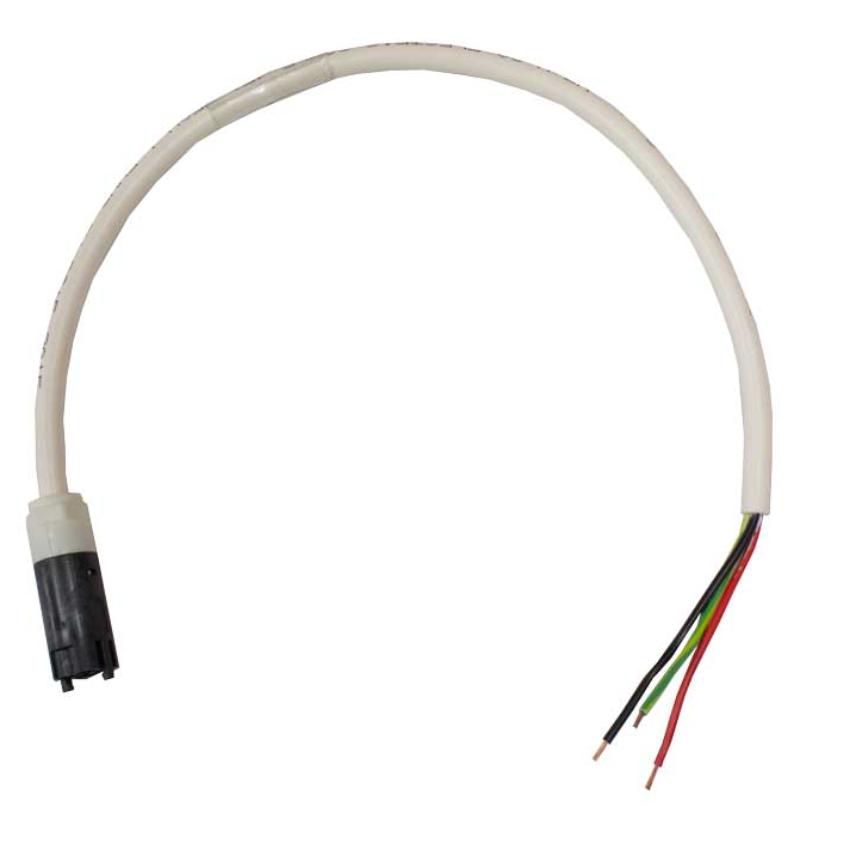

300mm Starter Cable (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.000.3A6.2.003
- Sheath colour: White
- Approximate weight: 0.05 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
300mm Starter Cable (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.000.3B6.3.003
- Sheath colour: Black
- Approximate weight: 0.065 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
3m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.030
- Sheath colour: White
- Approximate weight: 0.37 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
3m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.030
- Sheath colour: Black
- Approximate weight: 0.502 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
4m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.040
- Sheath colour: White
- Approximate weight: 0.49 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
4m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.040
- Sheath colour: Black
- Approximate weight: 0.664 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.005
- Sheath colour: White
- Approximate weight: 0.08 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
500mm Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.005
- Sheath colour: Black
- Approximate weight: 0.098 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Connector Cable - (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.5BT.000.3.005
- Sheath colour: Black
- Approximate weight: 0.15 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
500mm Starter Cable (4C+E x 2.5mm², 5P)
Nexans ref. A1.1.000.5BT.3.005
- Sheath colour: Black
- Approximate weight: 0.15 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 25
- Nominal overall diameter: 12.2 mm
- Number of cores: 5
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
5m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.050
- Sheath colour: White
- Approximate weight: 0.61 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
5m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.050
- Sheath colour: Black
- Approximate weight: 0.827 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
6m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.060
- Sheath colour: White
- Approximate weight: 0.72 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
6m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.060
- Sheath colour: Black
- Approximate weight: 0.988 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
7m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.070
- Sheath colour: White
- Approximate weight: 0.84 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
7m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.070
- Sheath colour: Black
- Approximate weight: 1.151 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
8m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.080
- Sheath colour: White
- Approximate weight: 0.96 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
8m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.080
- Sheath colour: Black
- Approximate weight: 1.312 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
9m Connector Cable - (2C+E x 1.5mm², 3P)
Nexans ref. A1.3.3A6.000.2.090
- Sheath colour: White
- Approximate weight: 1.08 kg/m
- Conductor cross-section: 1.5 mm²
- Gland Size (A2 or A2F): 20S
- Nominal overall diameter: 8.9 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 13.6
9m Connector Cable - (2C+E x 2.5mm², 3P)
Nexans ref. A1.1.3B6.000.3.090
- Sheath colour: Black
- Approximate weight: 1.474 kg/m
- Conductor cross-section: 2.5 mm²
- Gland Size (A2 or A2F): 20
- Nominal overall diameter: 10.1 mm
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C (Ohm/km): 7.41
Description
Description
Standards
-
NationalAS/NZS 3000; AS/NZS 61535:2011
As part of the ENVIROLEX Flexible Multicore 90°C product range, the Accessory & Connector Wiring connections are a measured, pre-wired and designed solution for power and lighting sub-circuits. It offers plug & play wiring through to final connections and pre-terminated accessories. Most suitable for Commercial and Tertiary (High-Safety Standard) Buildings. Multicore flexible copper conductor, X-HF-90 insulated, HFS-90-TP sheathed to AS/NZS 5000.2
Constructions
- Single core cables, Class 2 Copper
- X-HF-90 insulation
- HFS-90-TP outer sheath
Features
Benefits
- Pre-wired, pre-terminated and pre-tested Distribution Boards ready to plug on site
Applications
- Board Connections
- Commercial & Tertiary Buildings/High-Safety Standard Buildings
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
