CU TPS 2X 1.5+E WH 150HM BOOST

Description

Description

Standards

  • National
    AS/NZS 5000.2

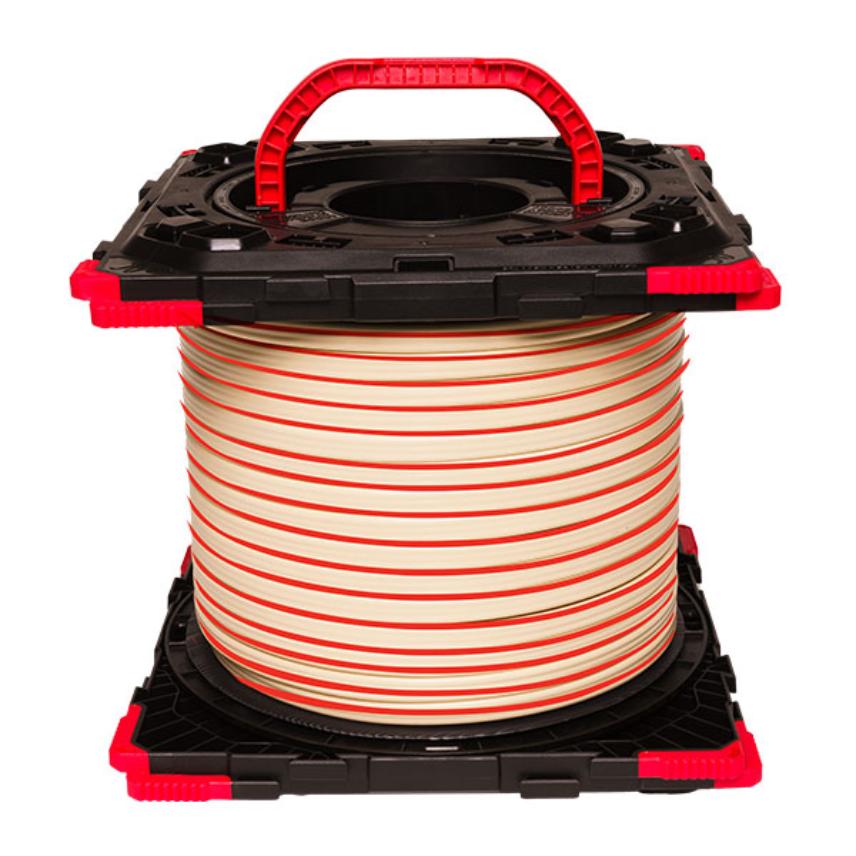

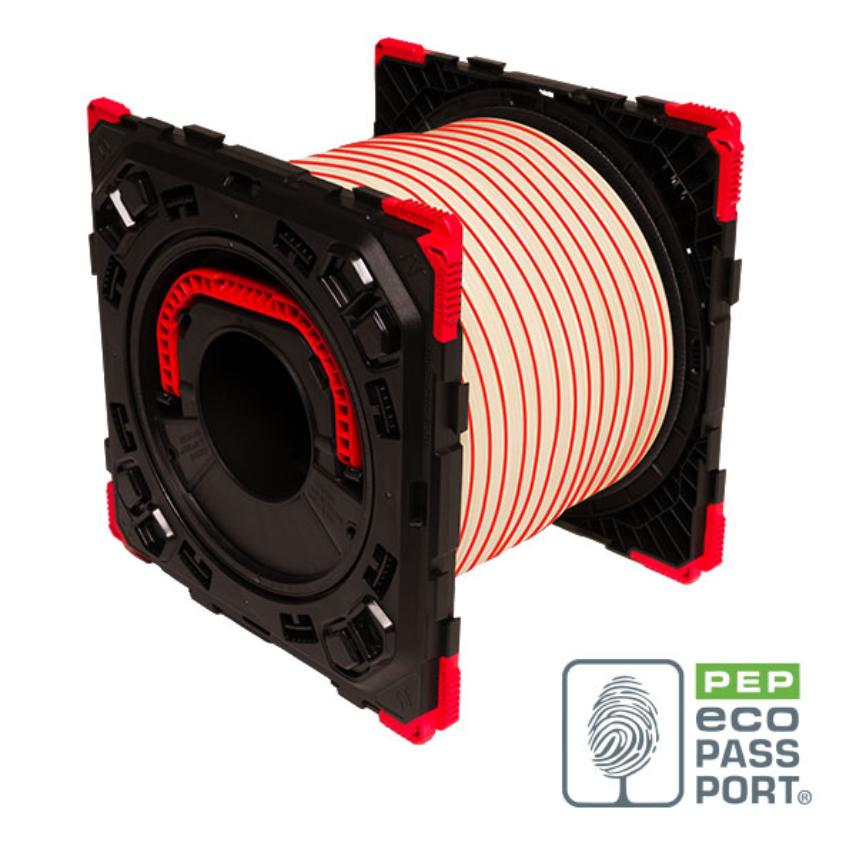

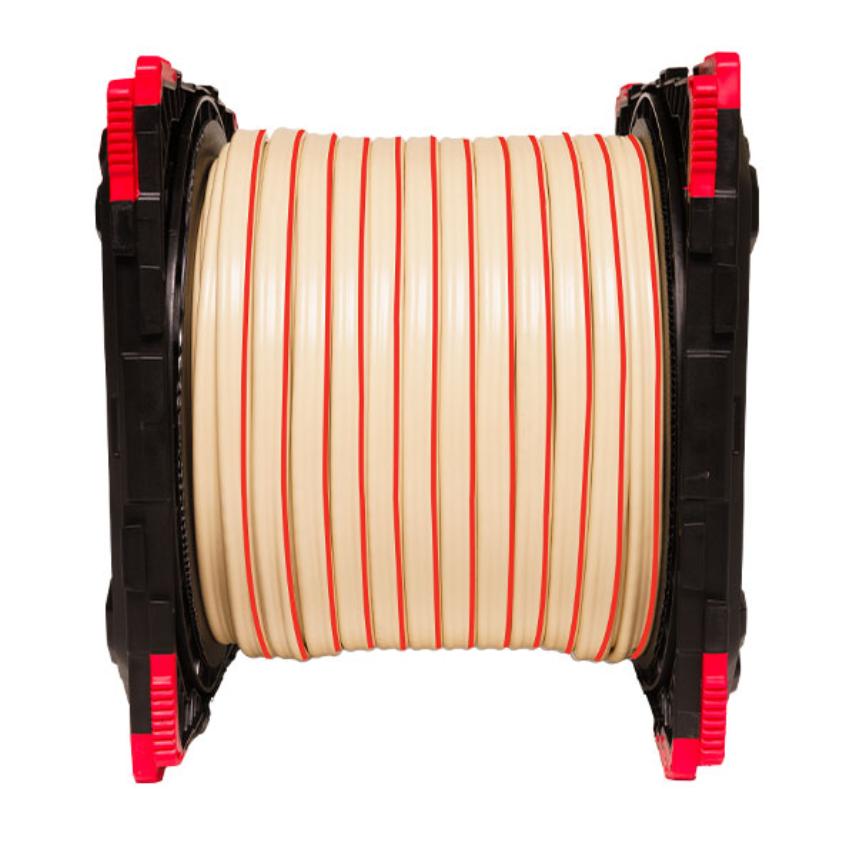

An innovative 'cable & reel' installation system that is easy to transport, easy to install, and reusable!



The MOBIWAY BOOST system includes:

  • The patented MOBIWAY BOOST reel system
  • Nexans' Top 3 selling TPS cables in optimal, pre-cut length



Features & Benefits:

  • Integrated handle means easy to carry
  • Vertical or horizontal stacking for running multiple cables
  • Optimised pre-cut cable length on every reel
  • Meter marked
  • Easy to unspool
  • Easy to rewind
  • The MOBIWAY BOOST reel is returnable and reusable

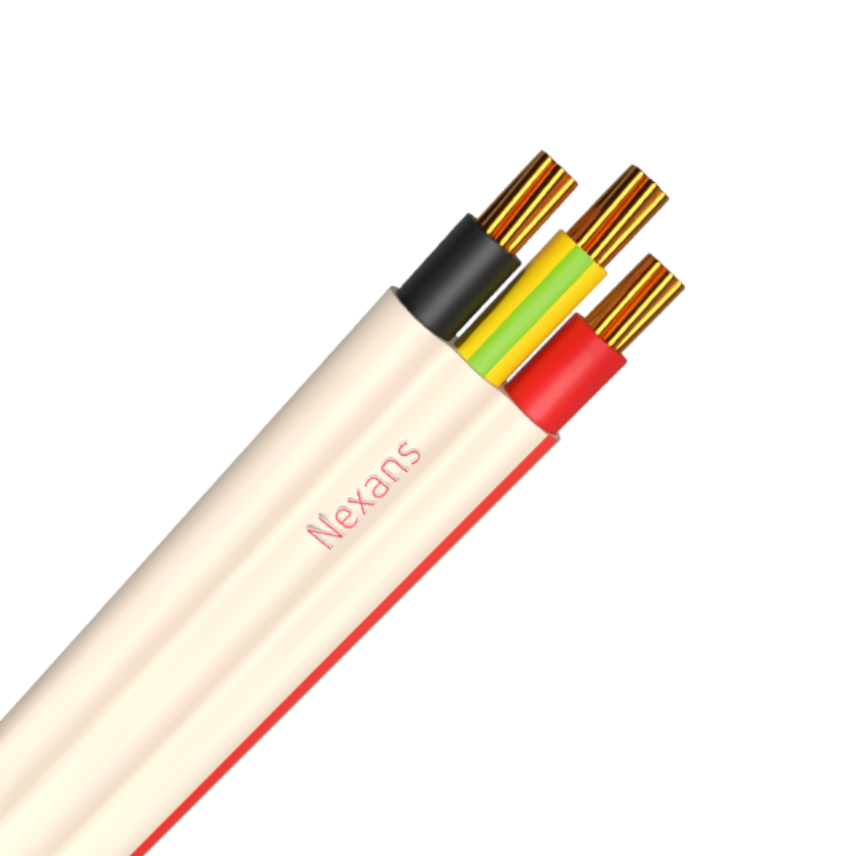

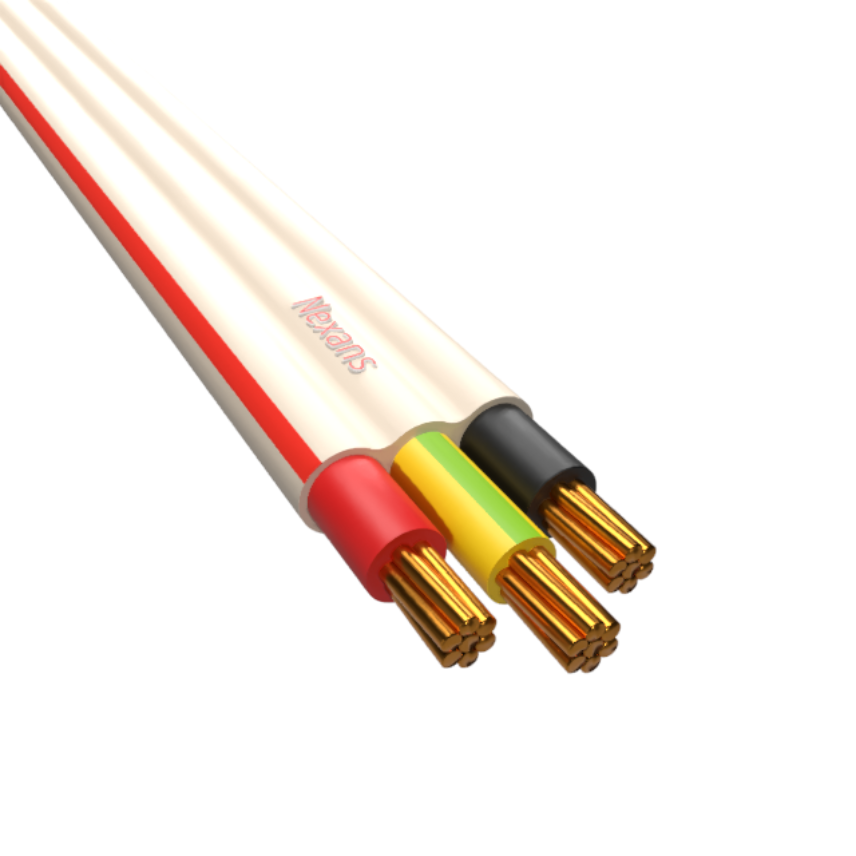

Cable data:

  • 2 core+earth flat
  • 450/750V V-90 insulated,
  • PVC sheathed to AS/NZS 5000.2,
  • Copper conductors



​Application

  • Domestic, residential, and commercial building
  • Industrial general applications
  • Fixed applications for power and lighting

MOBIWAY BOOST UNIT DIMENSIONS

Code

Description

Length

Net Weight

CNZP02MK002WVHF

CU TPS 2X1.0+E WH 200M BOOST

200m

15.3kg

CNZQ05MK002WVHF

CU TPS 2X1.5+E WH 150M BOOST

150m

14.8kg

CNZP07MK002WVHF

CU TPS 2X2.5+E WH 110M BOOST

110m

15.2kg

1670180

EMPTY BOOST SYSTEM

N/A

1.262kg



MOBIWAY BOOST (REEL) DIMENSIONS: H:287.3mm x W:287.3mm x D:258mm

PALLET DIMENSIONS (FULL PALLET = 48 BOOST UNITS): L:1167mm x W: 1167mm x H: 1162mm - WEIGHT: 1150kg (approx)

DISCOVER MOBIWAY BOOST

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Pilot wires
None
Sheath colour
White
With Green/Yellow core
Yes
Conductor material
Copper
Insulation
PVC
Outer sheath
PVC
Conductor flexibility
Class 2
Conductor shape
Circular
Core identification
Red, Black, Green/Yellow
Type of conductor
Circular, stranded
Wire colour
With smaller neutral conductor
No

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
1.5 mm²
Earth conductor cross section
1.5 mm²
Nominal overall diameter
4.7 x 10.2
Approximate weight
0.09 kg/m
Neutral conductor section (when smaller)
- mm²
Number of cores
2

Electrical characteristics

Electrical characteristics

Max. DC resistance of the conductor at 20°C (Ohm/km)
13.6
Rated Voltage Uo/U
450/750 V
Rated Voltage Uo/U (Um)
450/750 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Rigid

Usage characteristics

Usage characteristics

Max. conductor temperature in service
75 °C

Resources

Resources

Current carrying capacities single phase (in Amps) - TPS - 2 cores and 2 cores plus earth

PVC insulation For cables up to and including 450/750 V @ 50 Hz AC.
Conductor cross-section
mm² Cu Cu Cu Cu Cu Cu
1.5 22 21 18 23 23 10
Air Spaced from Surface, Unenclosed
Air touching, unenclosed
Air enclosed
Buried direct
Buried in single-way duct
Cable surrounded by thermal insulation unenclosed

Selling & delivery Information

Cable PEP/EPD available
