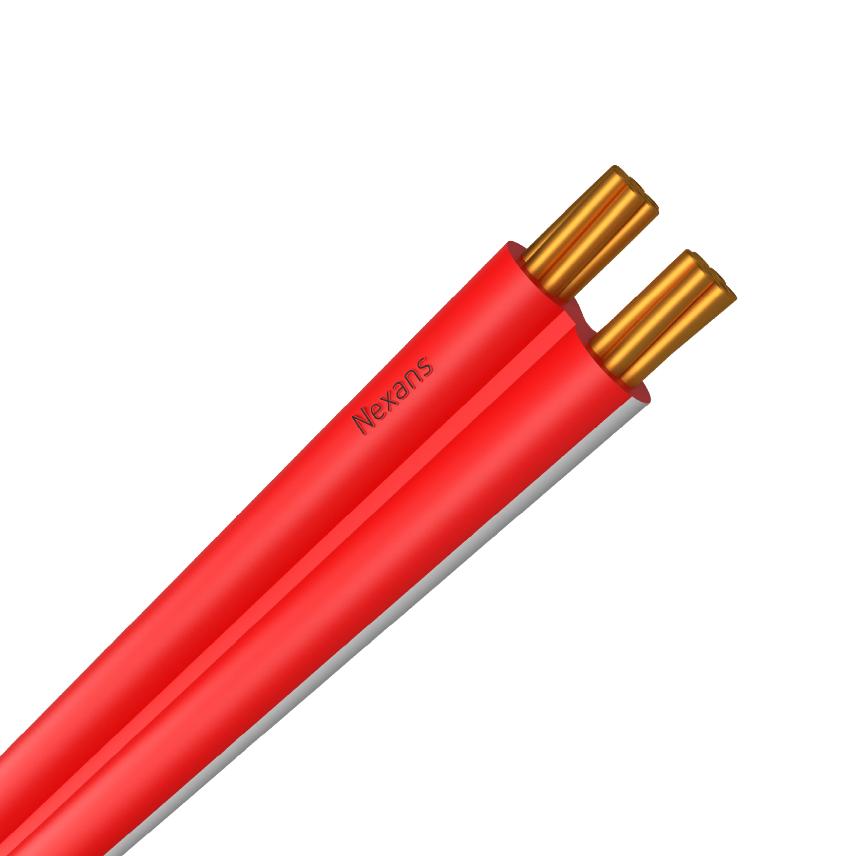

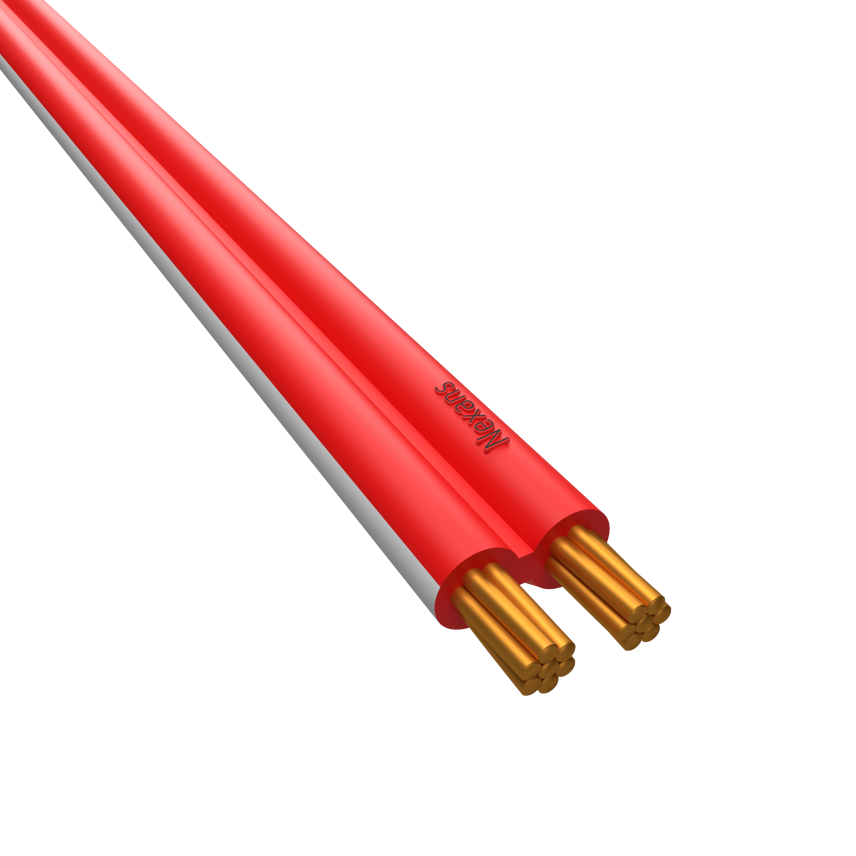

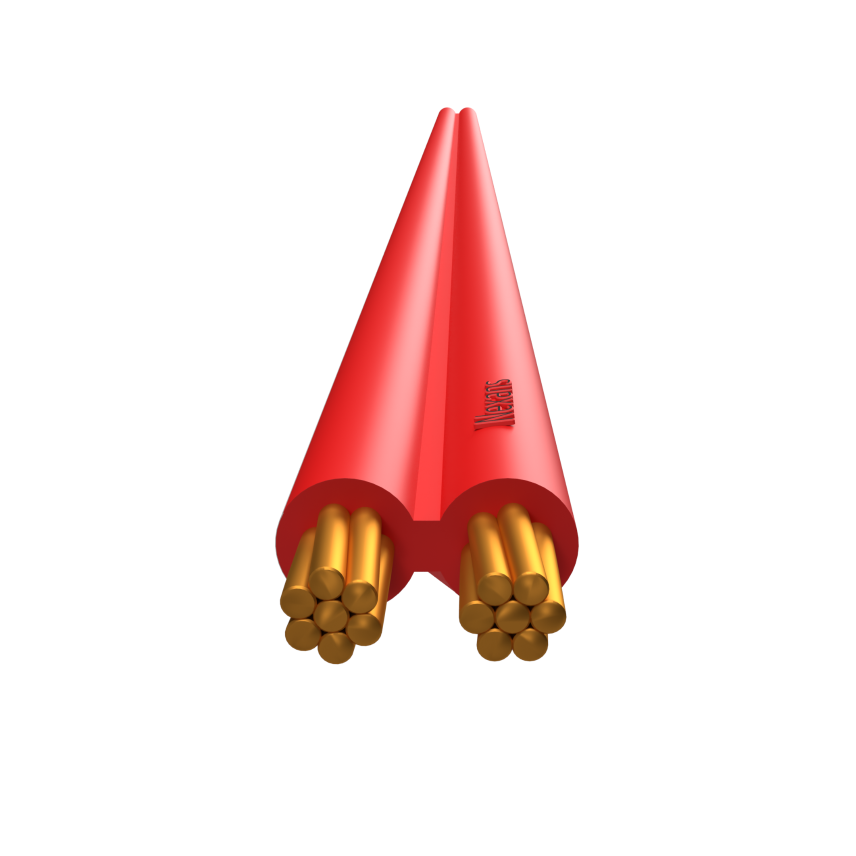

Audio - Figure 8 Speaker Trurip (Standard)
Audio - Figure 8 Speaker Trurip (Standard)
Flexible Cu conductor, PVC insulation
Read moreAudio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.5WTBK1 - Country ref. 6121.1
- Colour: Black/White
- Conductor cross-section: 0.5 mm²
- Approximate weight: 0.02 kg/m
- Stranding (No./mm): 14/0.20
Audio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.5GYBK* (A or D) - Country ref. 1878
- Packaging: m
- Colour: Grey / black
- Conductor cross-section: 0.5 mm²
- Approximate weight: 0.02 kg/m
- Stranding (No./mm): 14/0.20
Audio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.75BKWT* (B or D) - Country ref. 7555
- Packaging: m
- Colour: Black/White
- Conductor cross-section: 0.75 mm²
- Approximate weight: 0.03 kg/m
- Stranding (No./mm): 24/0.20
Audio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.75BEWT5 - Country ref. 8602.5
- Colour: Blue / white
- Conductor cross-section: 0.75 mm²
- Approximate weight: 0.03 kg/m
- Stranding (No./mm): 24/0.20
Audio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.75RDBK* (A, B or D) - Country ref. 3221
- Packaging: m
- Colour: Red / black
- Conductor cross-section: 0.75 mm²
- Approximate weight: 0.03 kg/m
- Stranding (No./mm): 24/0.20
Audio - Figure 8 Speaker Cable (Standard)
Nexans ref. JSF.75CL1 - Country ref. 8056.1
- Colour: Transparent
- Conductor cross-section: 0.75 mm²
- Approximate weight: 0.03 kg/m
- Stranding (No./mm): 24/0.20
Description
Description
Standards
-
ProductManufacturer specification
Application
Suitable for use in audio system for low and high power speaker connections.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
2
Electrical characteristics
Electrical characteristics
Maximum operating voltage
50 VAC / 120 VDC
Rated Voltage Uo/U (Um)
-
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
