Control Cables (Armoured)
Control Cables (Armoured)

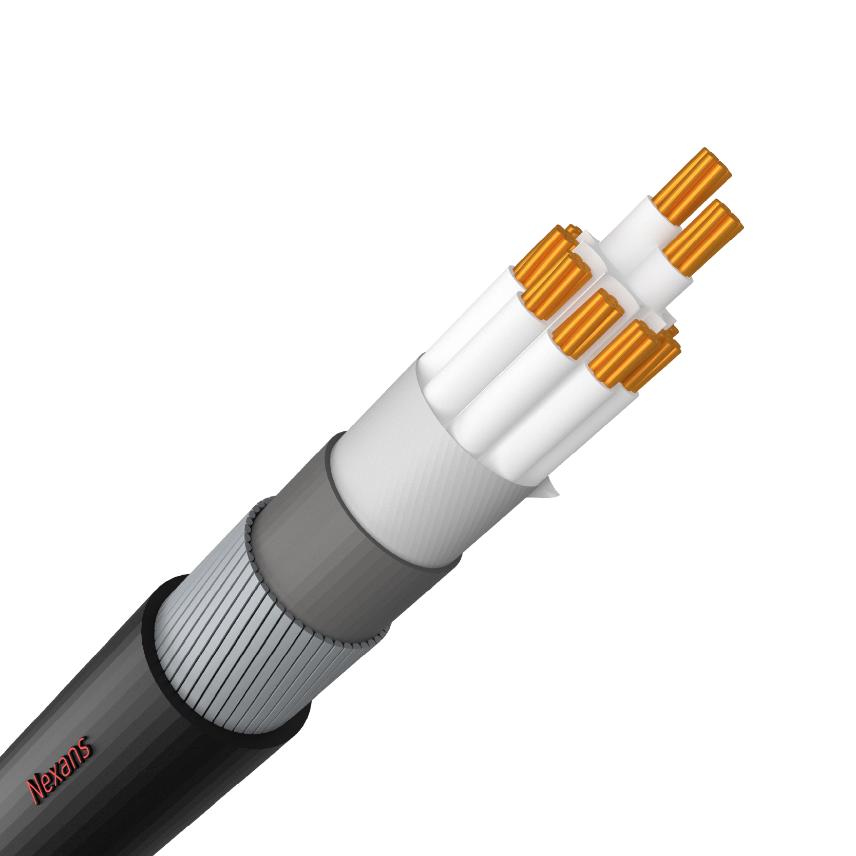

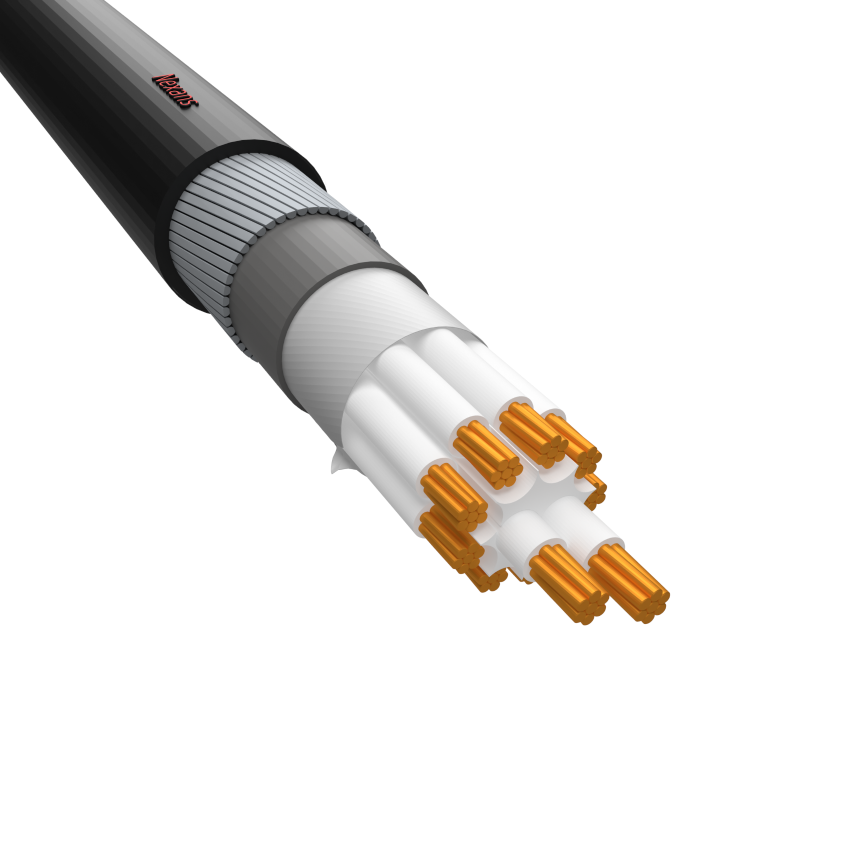

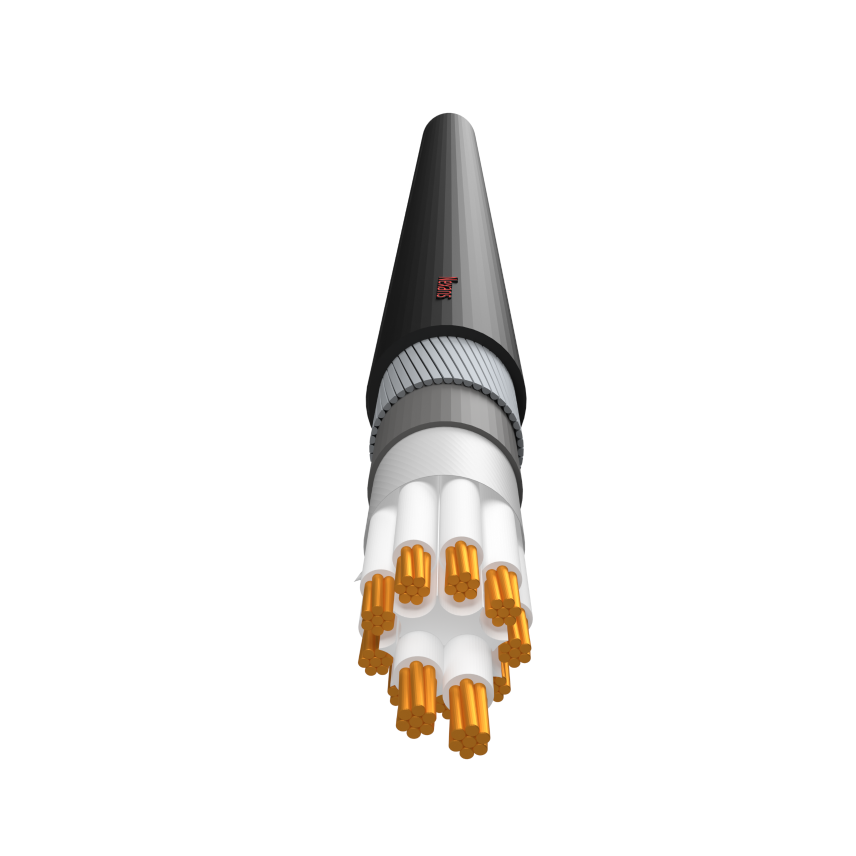

Cu conductors, PVC insulation (numbered cores), Laid up, Extruded Bedding, GSW armour, Black PVC sheath. 0.6/1 kV. Made to BS 6346.
Read moreCU CNTRL-ARM 1.5 X 2
Nexans ref. DAMQ05NG002CXWW - Country ref. 7655
- Packaging: Cut to length (m)
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 12.4 mm
- Approximate weight: 0.32 kg/m
CU CNTRL-ARM 1.5 X 3
Nexans ref. FAMQ05NG003CXWW - Country ref. 2059
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 12.9 mm
- Approximate weight: 0.33 kg/m
CU CNTRL-ARM 1.5 X 4
Nexans ref. HAMQ05NG004CXWW - Country ref. 5841
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 13.7 mm
- Approximate weight: 0.38 kg/m
CU CNTRL-ARM 1.5 X 7
Nexans ref. BPCQ05NG007CXWW - Country ref. 6688
- Packaging: Cut to length (m)
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 15.4 mm
- Approximate weight: 0.49 kg/m
CU CNTRL-ARM 1.5 X 12
Nexans ref. BPCQ05NG012CXWW - Country ref. 5505
- Packaging: Cut to length (m)
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
- Nominal overall diameter: 19.7 mm
- Approximate weight: 0.85 kg/m
CU CNTRL-ARM 2.5 X 3
Nexans ref. FAMP07NG003CXWW - Country ref. 2721
- Packaging: Cut to length (m)
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 14.1 mm
- Approximate weight: 0.41 kg/m
CU CNTRL-ARM 2.5 X 4
Nexans ref. HAMP07NG004CXWW - Country ref. 5326
- Packaging: Cut to length (m)
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 15.0 mm
- Approximate weight: 0.47 kg/m
CU CNTRL-ARM 2.5 X 7
Nexans ref. BPCP07NG007CXWW - Country ref. 7223
- Packaging: Cut to length (m)
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 18.0 mm
- Approximate weight: 0.73 kg/m
CU CNTRL-ARM 2.5 X 12
Nexans ref. BPCP07NG012CXWW - Country ref. 4840
- Packaging: Cut to length (m)
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 22.3 mm
- Approximate weight: 1.08 kg/m
CU CNTRL-ARM 2.5 X 19
Nexans ref. BPCP07NG019CXWW
- Packaging: Cut to length (m)
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 26.6 mm
- Approximate weight: 1.62 kg/m
CU CNTRL-ARM 2.5 X 27
Nexans ref. BPCP07NG027CXWW
- Packaging: Cut to length (m)
- Number of cores: 27
- Conductor cross-section: 2.5 mm²
- Nominal overall diameter: 31.2 mm
- Approximate weight: 2.05 kg/m
Description
Description
Standards
-
ProductBS 6346
Application
- Industrial and commerical applications
- Used as connection type of cable between control cabinets where a number of control signals are required; or for use in any areas where control of equipment is required.
- Both unarmoured and armoured controls are used in the similar style of application, the only difference being that in the case of unarmoured cable the customer may require mechanical protection of the cable.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
PVC
Material of bedding
PVC
Armour type
Galvanized steel wires
Outer sheath
PVC
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
U.V resistance
Yes
Resources
Resources
Documentation
Current carrying capacities (in Amps) - Control cables
Control cables
| Conductor cross-section |
|
|
|
|
|---|---|---|---|---|
| mm² | Cu | Cu | Cu | Cu |
| 1.5 | 21 | 33 | 17 | 28.6 |
| 2.5 | 30 | 18 | 25 | 15.6 |
|
Unenclosed touching 2 cond. |
|
Voltage Drop 2 Cond. Single Phase (mV/A.m) |
|
Unenclosed touching 3 cond. |
|
Voltage Drop 3 Cond. Three phase (mV/A.m) |
